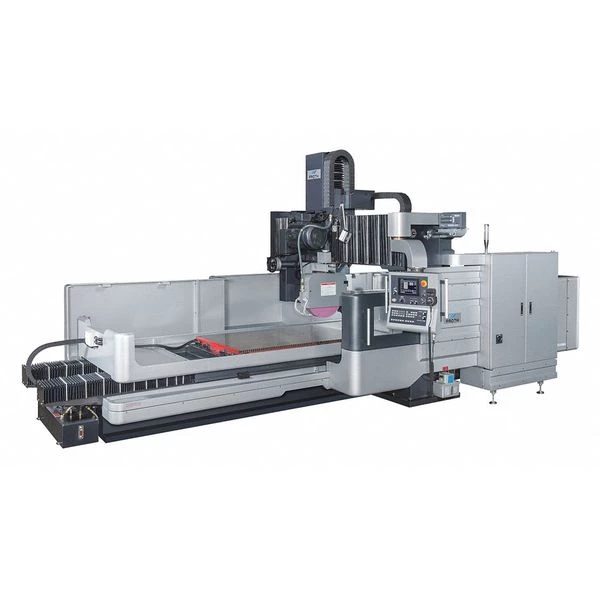

Sharp Surface Grinder, Automatic, 220V
Original price was: $446.00.$96.99Current price is: $96.99.
Surface Grinder, Table Dimensions 47.2 in x 78.7 in, Phase 3, Operation Type Automatic, Grinding Wheel Dia. 20 in, Max. Grinding Width 11 in, Coolant Fed Non-Coolant Fed, Cross Handwheel Feed per Revolution 0.2000 in, Crossfeed Handwheel Graduation 0.0008 in, Features Cross Beam Equipped with Ball Screws for Smooth Spindle Head Travel, Cross Travel Operated by Control Panel Dials
... people are viewing this right now
Sharp #SHDC-4780 Specifications
- Zoro #: G7686679
- Mfr #: SHDC-4780
- Item: Surface Grinder
- Phase: 3
- Voltage: 220 V
- HP: 15
- Operation Type: Automatic
- Crossfeed Handwheel per Revolution: 0.200″
- Crossfeed Table Travel: 11-3/4″
- Longitudinal Table Travel: 24-3/8″
- Max. Grinding Width: 11 in
- Downfeed Handwheel per Graduation: 0.0002″
- Downfeed Handwheel per Revolution: 0.050″
- Hz: 60
- Coolant Feed: Non-Coolant Fed
- Max. Grinding Length: 20 15/32 in
- Overall Width: 47 in
- Wheel Width: 2″
- Magnetic Chuck Size: 10 in x 20 in
- Grinding Wheel Dia.: 20 in
- Includes: Wheel, Wheel Balancer, Wheel Balancing Arbor, Wheel Flange, Diamond Dresser, Criss Cross Grinding, Cross Feed Stroke Adjuster, Oil Temperature Control System, Leveling Bolt, Pad
- Longitudinal Table Speed: 196 to 984 in/min
- Spindle to Table: 27-5/8″
- Overall Length: 80 in
- Crossfeed Handwheel per Graduation: 0.0008″
- Wheel Bore: 5″
- Spindle RPM: 10,000
- Features: Cross Beam Equipped with Ball Screws for Smooth Spindle Head Travel, Cross Travel Operated by Control Panel Dials
- Machine Weight: 31,900 lb
- Hydraulic Feed: 78.7 to 984 in/min
- Table Dimensions: 47.2 in x 78.7 in
- Frequency: 60Hz
- Coolant Fed: Non-Coolant Fed
- Longitudinal Travel: 24 3/8 in
- Vertical Handwheel Graduation: 0.0002 in
- Spindle Center to Table Distance: 27 5/8 in
- Horsepower: 15
- Grinding Wheel Width: 2 in
- Intermittent Feed: 0.0040 in to 1.3800 in
- Cross Handwheel Feed per Revolution: 0.2000 in
- Spindle Speed: 10,000 RPM
- Grinding Wheel Bore: 5 in
- Crossfeed Handwheel Graduation: 0.0008 in
- Country of Origin (subject to change): Taiwan, Province of China
