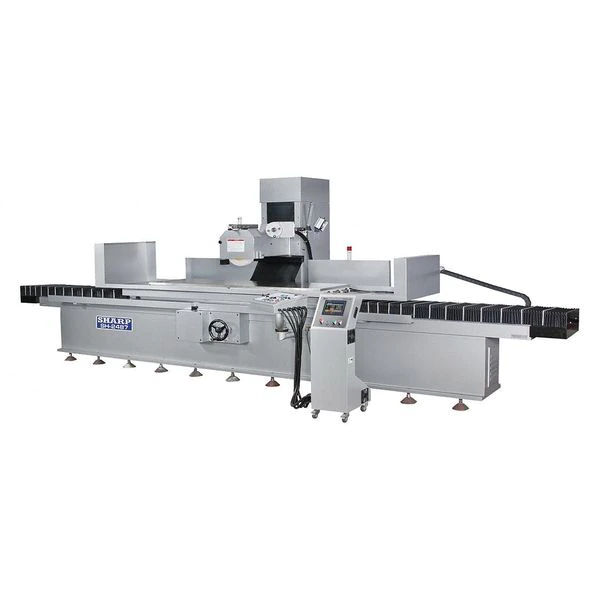

Sharp Surface Grinder, Automatic, 220V
Original price was: $517.00.$94.99Current price is: $94.99.
Surface Grinder, Table Dimensions 19.7 in x 47 in, Phase 3, Operation Type Automatic, Grinding Wheel Dia. 1 1/2 in, Max. Grinding Width 11 in, Coolant Fed Non-Coolant Fed, Cross Handwheel Feed per Revolution 0.2000 in, Crossfeed Handwheel Graduation 0.0008 in, Features Automatic Cross Feed, Automatic Lubrication System
... people are viewing this right now
Sharp #SH-2047 Specifications
- Zoro #: G7686618
- Mfr #: SH-2047
- Item: Surface Grinder
- Phase: 3
- Voltage: 220 V
- HP: 10
- Max. Grinding Length: 20 15/32 in
- Crossfeed Handwheel per Revolution: 0.200″
- Spindle RPM: 10,000
- Includes: Coolant System, Wheel Balancing Stand, Wheel Balancing Arbor, Wheel Flange, Grinding Wheel, Auto Lube System, Spindlehead, Splash Guard
- Crossfeed Table Travel: 11-3/4″
- Crossfeed Handwheel per Graduation: 0.0008″
- Longitudinal Table Travel: 24-3/8″
- Coolant Feed: Non-Coolant Fed
- Downfeed Handwheel per Graduation: 0.0002″
- Overall Width: 20 in
- Hz: 60
- Spindle to Table: 27-5/8″
- Magnetic Chuck Size: 10 in x 20 in
- Max. Grinding Width: 11 in
- Overall Length: 47 in
- Features: Automatic Cross Feed, Automatic Lubrication System
- Wheel Width: 2″
- Grinding Wheel Dia.: 1 1/2 in
- Operation Type: Automatic
- Wheel Bore: 5″
- Longitudinal Table Speed: 196 to 984 in/min
- Downfeed Handwheel per Revolution: 0.050″
- Machine Weight: 16,000 lb
- Cross Handwheel Feed per Revolution: 0.2000 in
- Longitudinal Travel: 24 3/8 in
- Hydraulic Feed: 6.6 to 82 fpm
- Spindle Speed: 10,000 RPM
- Frequency: 60Hz
- Grinding Wheel Bore: 5 in
- Table Dimensions: 19.7 in x 47 in
- Spindle Center to Table Distance: 27 5/8 in
- Grinding Wheel Width: 2 in
- Horsepower: 10
- Intermittent Feed: 0.0040 to 0.4000 in/min
- Coolant Fed: Non-Coolant Fed
- Crossfeed Handwheel Graduation: 0.0008 in
- Vertical Handwheel Graduation: 0.0002 in
- Country of Origin (subject to change): Taiwan, Province of China
