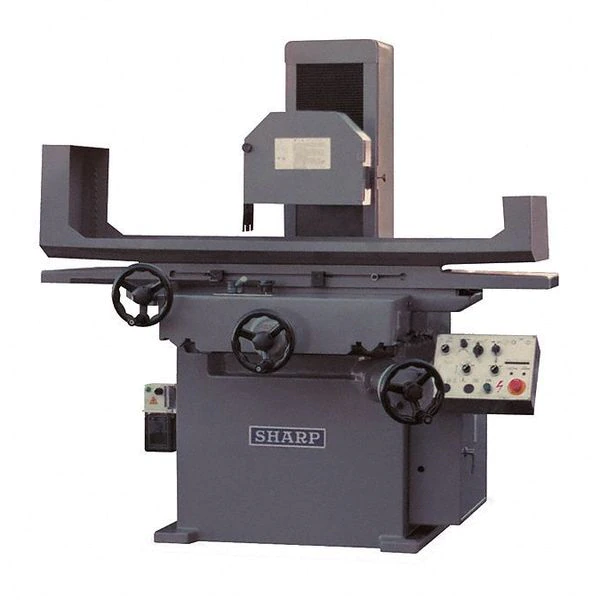

Sharp Surface Grinder, Automatic, 220V
Original price was: $517.00.$93.99Current price is: $93.99.
Surface Grinder, Table Dimensions 11.6 in x 23.6 in, Phase 3, Operation Type Automatic, Grinding Wheel Dia. 14 in, Max. Grinding Width 8 1/8 in, Coolant Fed Non-Coolant Fed, Cross Handwheel Feed per Revolution 0.2000 in, Crossfeed Handwheel Graduation 0.0005 in, Features Automatic Cross Feed, Automatic Lubrication System
... people are viewing this right now
Sharp #SH-1224 Specifications
- Zoro #: G5061940
- Mfr #: SH-1224
- Item: Surface Grinder
- Phase: 3
- Voltage: 220 V
- HP: 3
- Features: Automatic Cross Feed, Automatic Lubrication System
- Overall Length: 24 in
- Hz: 60
- Includes: Grinding Wheel, Auto Lube System, Coolant System, Wheel Adapter/Flange, Wheel Balancing Arbor, Grinding Wheel Balancing Stand, Diamond Dresser, Splash Guard
- Magnetic Chuck Size: 10 in x 20 in
- Longitudinal Table Speed: 196 to 984 in/min
- Grinding Wheel Dia.: 14 in
- Overall Width: 12 in
- Operation Type: Automatic
- Crossfeed Handwheel per Revolution: 0.200″
- Crossfeed Handwheel per Graduation: 0.0005″
- Max. Grinding Length: 20 15/32 in
- Downfeed Handwheel per Graduation: 0.0002″
- Wheel Width: 1″
- Longitudinal Table Travel: 18-3/4″
- Spindle to Table: 19-5/16″
- Max. Grinding Width: 8 1/8 in
- Crossfeed Table Travel: 6-3/4″
- Coolant Feed: Non-Coolant Fed
- Wheel Bore: 5″
- Downfeed Handwheel per Revolution: 0.050″
- Spindle RPM: 10,000
- Machine Weight: 4,700 lb
- Cross Handwheel Feed per Revolution: 0.2000 in
- Frequency: 60Hz
- Spindle Center to Table Distance: 19 5/16 in
- Intermittent Feed: 0.0040 to 0.4000 in/min
- Longitudinal Travel: 18 3/4 in
- Hydraulic Feed: 6.6 to 82 fpm
- Horsepower: 3
- Crossfeed Handwheel Graduation: 0.0005 in
- Coolant Fed: Non-Coolant Fed
- Table Dimensions: 11.6 in x 23.6 in
- Spindle Speed: 10,000 RPM
- Grinding Wheel Width: 1 in
- Vertical Handwheel Graduation: 0.0002 in
- Grinding Wheel Bore: 5 in
- Country of Origin (subject to change): Taiwan, Province of China
