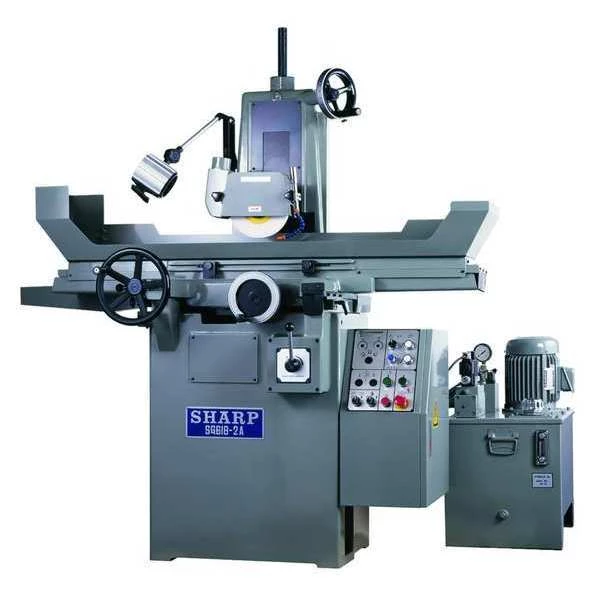

Sharp Surface Grinder, Manual, 220V
Original price was: $556.00.$92.99Current price is: $92.99.
Surface Grinder, Table Dimensions 6 in x 18.3 in, Phase 3, Operation Type Manual, Grinding Wheel Dia. 8 in, Max. Grinding Width 6 3/4 in, Coolant Fed Non-Coolant Through, Cross Handwheel Feed per Revolution 0.1000 in, Crossfeed Handwheel Graduation 0.0001 in, Features Double-Nut Backlash Eliminator, Smooth Wire Rope-Driven Table
... people are viewing this right now
Sharp #SG-618 Specifications
- Zoro #: G5091812
- Mfr #: SG-618
- Item: Surface Grinder
- Phase: 3
- Voltage: 220 V
- HP: 1-1/2
- Spindle RPM: 10,000
- Crossfeed Handwheel per Revolution: 0.100″
- Longitudinal Table Travel: 12-5/8″
- Wheel Bore: 1-1/8″
- Max. Grinding Width: 6 3/4 in
- Overall Width: 6 5/16 in
- Magnetic Chuck Size: 6 in x 12 in
- Downfeed Handwheel per Revolution: 0.030″
- Includes: Grinding Wheel, Auto Lube System, Wheel Adapter/Flange, Wheel Balancing Arbor, Work Light, Diamond Dresser
- Crossfeed Table Travel: 6-3/4″
- Spindle to Table: 15-45/64″
- Overall Length: 18 1/2 in
- Longitudinal Table Speed: 196 to 984 in/min
- Grinding Wheel Dia.: 8 in
- Operation Type: Manual
- Max. Grinding Length: 12 5/8 in
- Downfeed Handwheel per Graduation: 0.0002″
- Coolant Feed: Non-Coolant Fed
- Features: Double-Nut Backlash Eliminator, Smooth Wire Rope-Driven Table
- Wheel Width: (1) 3-1/2″, (2) 4″
- Hz: 60
- Machine Weight: 1,500 lb
- Horsepower: 1
- Hand Feed: 0.2 in/rev
- Spindle Center to Table Distance: 15 45/64 in
- Longitudinal Travel: 12 5/8 in
- Crossfeed Handwheel Graduation: 0.0001 in
- Grinding Wheel Width: 3 1/2 in, 4 in
- Spindle Speed: 10,000 RPM
- Cross Handwheel Feed per Revolution: 0.1000 in
- Frequency: 60Hz
- Vertical Handwheel Graduation: 0.0002 in
- Table Dimensions: 6 in x 18.3 in
- Grinding Wheel Bore: 1 1/8 in
- Coolant Fed: Non-Coolant Through
- Country of Origin (subject to change): Taiwan, Province of China
