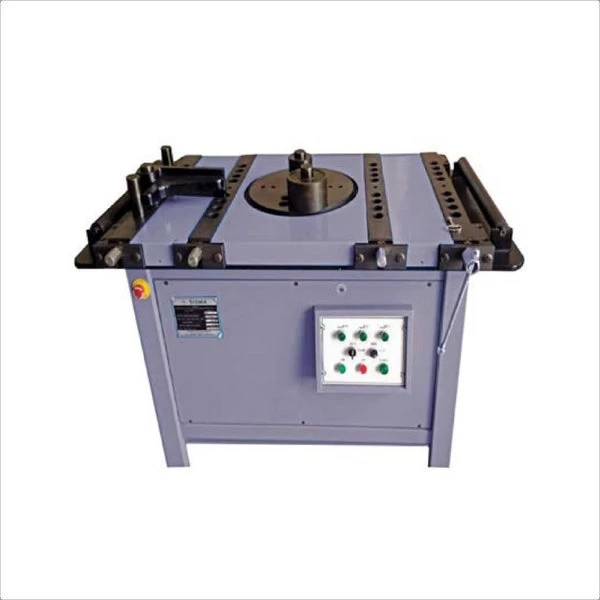

Sigma Rebar Bender For Up To # 11 Rebar
Original price was: $505.00.$91.99Current price is: $91.99.
These tools are used to accurately shape reinforcement bars. They are equipped with high-quality gears and motors and are easy to program and use. They can be used to bend in both directions. The frame and housings are powder-coated for durability and the gear boxes are fabricated with specially heat-treated alloy steel. DSX-25 Production Rebar Spiral Bending Machine Capacity #8 (25mm), Grade 60 Rebar Hoop Bending #6 (20mm), Grade 60 Spiral Bending Minimum Spiral Bending ø 11” ( 280mm) Width x Length x Height 28.95” (710mm) x 44.00” (1120mm) x 38.50” (980mm) Motor 5 hp (3.7 kW), 60 Hz, 240/415V 3-phase AC Weight 661 lbs ( 300 Kg) Gear Motor Type Planerary Gear Motor DBM-40P Production Rebar Bending Machine Capacity #11 (40mm), Grade 60 Rebar Width x Length x Height 29.5” (750mm) x 48.43” (1230mm) x 33.46” (850mm) Motor 7.5 hp (5.5 kW), 60 Hz, 240/415V 3-phase AC Weight 1300 lbs ( 590 Kg) Gear Motor Type Planerary Gear Motor This tool is capable of bending #11 (32mm) grade 60 rebar or 2 #6 (20mm) or 3 # 4 (12mm) DBM-32P Production Rebar Bending Machine Capacity #10 (32mm), Grade 60 Rebar Width x Length x Height 29.53” (750mm) x 36.22” (920mm) x 33.46” (850mm) Motor 5 hp (3.7 kW), 60 Hz, 240/415V 3-phase AC Weight 992 lbs ( 450 Kg) Gear Motor Type Planerary Gear Motor This tool is capable of bending #10 (32mm) grade 60 rebar or 2 #6 (20mm) or 3 # 4 (12mm) DBM-25S Production Rebar Bending Machine Capacity #8 (25mm), Grade 60 Rebar Width x Length x Height 26.38” (670mm) x 34.65” (880mm) x 33.46” (850mm) Motor 5 hp (3.7 kW), 60 Hz, 240/415V 3-phase AC Weight 772 lbs ( 350 Kg) Gear Motor Type Planerary Gear Motor This tool is capable of bending #8 (25mm) grade 60 rebar or 2 #5 (16mm) Model No. DCM-32
Sigma #DBM-40P Specifications
- Zoro #: G105302624
- Mfr #: DBM-40P
- Country of Origin (subject to change): India
Related Products
Our Portable Rebar Cutters will safely, efficiently, and cleanly cut rebar with maximum diameters from #5 (5/8”) to #10 (11⁄4”) grade 60. These are self-contained electric/hydraulic tools. They act as a cold-cutting shear and unlike saws with abrasive blades and cutting torches there are no sparks or flame. A safety relief valve for retracting the piston and a cutting guard are standard features. They ship complete in a durable carrying case along with additional hydraulic oil and a tool kit.
Rebar Tying Tool Kit, Battery Included, Voltage 14.4 V, Wire Size 21 ga, Rebar Size Up to #5 x #6, Tying Speed Less Than 1 sec/Tie, Cordless Tool Battery Type Li-Ion, Battery Included Mfr. No. JPL914, Battery Pack Replacement Mfr. No. JPL914, Battery Capacity 3.0 Ah, 3 Wraps per Tie, 120 Ties per Coil, 2,000 Ties per Charge, Features Compact, Light Weight, One-Hand Operation, Quick Tying, Length 11 3/8 in, Width 4 1/8 in, Height 12 in, Tool Weight 5.2 lb
Rebar Tying Tool Kit, Voltage 18V DC, Maximum Rebar Size Combination No. 8 x No. 8, Tying Speed Less Than 1 sec/Tie, Maximum Ties per Coil 120, Minimum Ties per Coil 90, Cordless Tool Kit Contents (1) Bare Tool, (1) Charger, (2) Batteries, Power Source Cordless, Tool Weight 6.2 lb, Brushless Motor Yes, Minimum Rebar Size Combination No. 8 x No. 8, Battery Capacity 4.0 Ah, Battery Model Number BNTLI-20, Battery Series Li-Ion 18V, Charger Included Yes, Charger Model Number 56HE66
Rebar Cutter And Bender Kit, Voltage 115V AC, Rebar Tool Style Portable, Tool Function Bending, Shearing, Maximum Imperial Rebar Cutting Capacity 5/8 in, Maximum Imperial Rebar Bending Capacity 5/8 in, Maximum Rebar Grade Bending Capacity 60, Cutting Head Rotation No, Maximum Rebar Grade Cutting Capacity 60, Application Rebar Cutting, Rebar Bending, Bearing Type Ball, Blade Material Alloy Steel, Blade Type Cutting Blocks, Current 10 A
Portable Rebar Bender, Voltage 120V AC, Rebar Tool Style Portable, Tool Function Bending, Maximum Imperial Rebar Bending Capacity 1 in, Maximum Rebar Grade Bending Capacity 60, Cutting Head Rotation No, Application Rebar Bending, Current 12 A, Includes Hydraulic Oil, Tool Kit, Wooden Carrying Case, Maximum Metric Rebar Bending Capacity 25 mm, Maximum Rebar Bend Angle 90 Degrees , Maximum Rebar Size Bending Capacity #8
Rebar Tying Tool Kit, Voltage 18V DC, Maximum Rebar Size Combination No. 6 x No. 6, Tying Speed Less Than 1 sec/Tie, Maximum Ties per Coil 128, Minimum Ties per Coil 128, Cordless Tool Kit Contents (1) Bare Tool, (1) Charger, (2) Batteries, Power Source Cordless, Tool Weight 5.8 lb, Brushless Motor Yes, Minimum Rebar Size Combination No. 6 x No. 6, Battery Capacity 4.0 Ah, Battery Model Number BNTLI-20, Battery Series Li-Ion 18V, Charger Included Yes, Charger Model Number 56HE66
Rebar Cutter Kit, Voltage 115V AC, Rebar Tool Style Portable, Tool Function Shearing, Maximum Imperial Rebar Cutting Capacity 1 in, Maximum Rebar Grade Bending Capacity 60, Cutting Head Rotation No, Maximum Rebar Grade Cutting Capacity 60, Application Rebar Cutting, Bearing Type Ball, Blade Material Alloy Steel, Blade Type Cutting Blocks, Current 12 A, Cutting Force 30 ton, Electrical Protection Double Insulated, Features Cutting Guard, No Sparks or Flame, Safety Relief Valve
Cordless Rebar Cutter, Voltage 24V DC, Tool Function Sawing, Maximum Cutting Depth 1 1/8 in, Maximum Rebar Grade Cutting Capacity 60, Cutting Head Rotation No, Cutting Head Rotation Angle 0 Degrees , Brushless Motor No, Cordless Tool Kit Contents (1) Bare Tool, (1) Charger, (2) Batteries, Battery Capacity 6.0 Ah, Blade Diameter 5 in, Maximum Speed 2,000 RPM, Minimum Rebar Gauge Cutting Capacity 1 in, Application Rebar Cutting, Battery Model Number BNCE-24VLI
Rebar Tying Tool Kit, Voltage 14.4V DC, Maximum Rebar Size Combination No. 7 x No. 8, Tying Speed Less Than 1 sec/Tie, Maximum Ties per Coil 90, Minimum Ties per Coil 75, Cordless Tool Kit Contents (1) Bare Tool, (1) Battery, Power Source Cordless, Tool Weight 5.3 lb, Brushless Motor Yes, Minimum Rebar Size Combination No. 5 x No. 5, Battery Capacity 3.9 Ah, Battery Model Number JPL91440A, Charger Included Yes, Compatible Wire Gauge 21 ga
Portable Rebar Bender, Voltage 120V AC, Rebar Tool Style Benchtop, Tool Function Bending, Maximum Imperial Rebar Bending Capacity 5/8 in, Maximum Rebar Grade Bending Capacity 60, Cutting Head Rotation No, Application Rebar Bending, Current 10 A, Features Dial-Type Angle Selector, Emergency Stop Switch and Two Side Lifting Handles, Strong Electrical-Mechanical Bender, Includes Standard Foot Pedal Control Switch, Tool Kit, (6) Bending Rollers in a Steel Carrying Case
Portable Hydraulic Rebar Cutter, Voltage 115V AC, Rebar Tool Style Portable, Tool Function Shearing, Maximum Imperial Rebar Cutting Capacity 5/8 in, Maximum Rebar Grade Bending Capacity 60, Cutting Head Rotation No, Maximum Rebar Grade Cutting Capacity 60, Application Bolt and Rod Cutting, Chain Cutting, Rebar Cutting, Bearing Type Ball, Blade Material Alloy Steel, Blade Type Cutting Blocks, Current 10 A, Cutting Force 15 ton, Electrical Protection Double Insulated
