Walter Valenite Walter – Shank tool – Grooving
Original price was: $218.65.$97.99Current price is: $97.99.

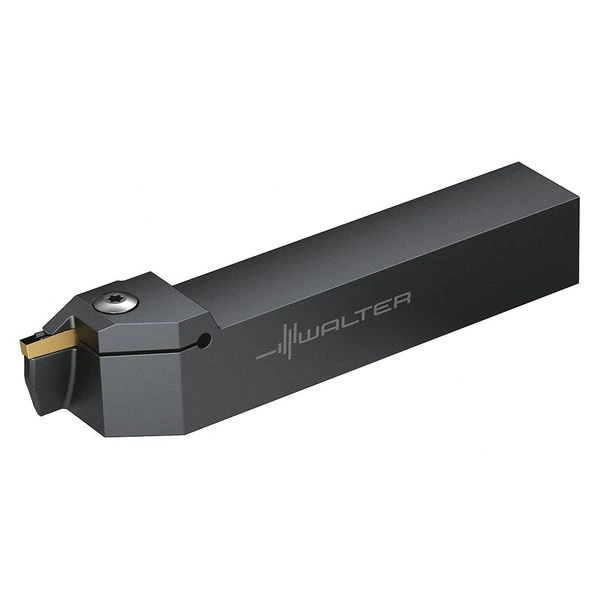

Indexable Grooving and Parting Toolholder, NOVEX-CUT External Positive, Insert Style GX, Left Hand, Grooving, Shank Width 1 in, ANSI Code G1111.16L-3T22-067GX24, Center to Cutting Tip 25.08mm, Compatible Hardware Clamp Screw FS2118;Torx Key FS1464
Walter Valenite #G1111.16L-3T22-067GX24 Specifications
- Zoro #: G8010746
- Mfr #: G1111.16L-3T22-067GX24
- Item: Indexable Grooving and Parting Toolholder
- Material: Steel
- Overall Length: 6-1/16 in
- Shank Dia.: 1 in
- Cutting Direction: Left Hand
- Application: Axial Grooving
- Includes: Clamp Screw FS2118;Torx Key FS1464
- Cutting Location: External
- Insert Holding Type: Clamp
- Shank Length: 110.00mm
- Compatible Hardware: Clamp Screw FS2118;Torx Key FS1464
- Insert Style: GX
- Hardware Included: Yes
- Series: G1111
- Max. Grooving Width: 3.00mm
- ANSI Code: G1111.16L-3T22-067GX24
- Shank Height: 1 in
- Head Length: 44.00mm
- Center to Cutting Tip: 25.08mm
- Toolholder Style: G1111
- Shank Shape: Square
- Hardware Required: Yes
- Max. Workpiece Dia.: 100.00mm
- Depth of Cut: 0.8660 in
- Product Family: NOVEX-CUT External Positive
- Cutting Application: Grooving
- ISO Number: G1111.16L-3T22-067GX24
- Shank Width: 1 in
- Country of Origin (subject to change): Germany
