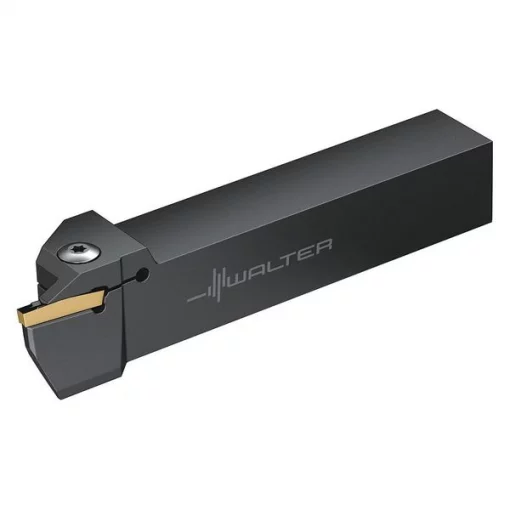

Walter Valenite Walter – Shank tool – Grooving
Original price was: $218.65.$98.99Current price is: $98.99.
Indexable Grooving and Parting Toolholder, NOVEX-CUT External Positive, Insert Style GX, Right Hand, Grooving, Shank Width 1 in, ANSI Code G1111.16R-4T25-092GX24, Center to Cutting Tip 24.45mm, Compatible Hardware Clamp Screw FS2118;Torx Key FS1464
Walter Valenite #G1111.16R-4T25-092GX24 Specifications
- Zoro #: G8065933
- Mfr #: G1111.16R-4T25-092GX24
- Item: Indexable Grooving and Parting Toolholder
- Material: Steel
- Shank Dia.: 1 in
- Overall Length: 6.1420 in
- Cutting Direction: Right Hand
- Application: Axial Grooving
- Includes: Clamp Screw FS2118;Torx Key FS1464
- Series: G1111
- Compatible Hardware: Clamp Screw FS2118;Torx Key FS1464
- Toolholder Style: G1111
- ISO Number: G1111.16R-4T25-092GX24
- Hardware Required: Yes
- Shank Shape: Square
- Head Length: 46.00mm
- Cutting Location: External
- Product Family: NOVEX-CUT External Positive
- Insert Holding Type: Clamp
- Hardware Included: Yes
- ANSI Code: G1111.16R-4T25-092GX24
- Max. Grooving Width: 4.00mm
- Shank Height: 1 in
- Shank Width: 1 in
- Depth of Cut: 63/64 in
- Insert Style: GX
- Cutting Application: Grooving
- Center to Cutting Tip: 24.45mm
- Max. Workpiece Dia.: 140.00mm
- Shank Length: 110.00mm
- Country of Origin (subject to change): Germany
