Walter Valenite Walter – Shank tool – Grooving
Original price was: $218.65.$96.99Current price is: $96.99.

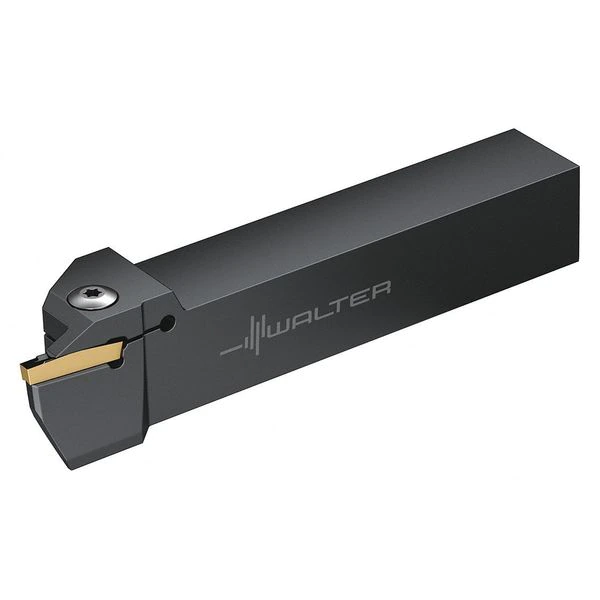

Indexable Grooving and Parting Toolholder, NOVEX-CUT External Positive, Insert Style GX, Right Hand, Grooving, Shank Width 25.00mm, ANSI Code G1111.2525R-3T22-067GX24, Center to Cutting Tip 24.70mm, Compatible Hardware Clamp Screw FS2118;Torx Key FS1464
Walter Valenite #G1111.2525R-3T22-067GX24 Specifications
- Zoro #: G8371097
- Mfr #: G1111.2525R-3T22-067GX24
- Item: Indexable Grooving and Parting Toolholder
- Material: Steel
- Overall Length: 154.00mm
- Shank Dia.: 25mm
- Cutting Direction: Right Hand
- Application: Axial Grooving
- Includes: Clamp Screw FS2118;Torx Key FS1464
- Insert Holding Type: Clamp
- Shank Height: 25.00mm
- Toolholder Style: G1111
- Center to Cutting Tip: 24.70mm
- Hardware Included: Yes
- ISO Number: G1111.2525R-3T22-067GX24
- Series: G1111
- Compatible Hardware: Clamp Screw FS2118;Torx Key FS1464
- Product Family: NOVEX-CUT External Positive
- Head Length: 44.00mm
- Max. Workpiece Dia.: 100.00mm
- Shank Shape: Square
- Max. Grooving Width: 3.00mm
- Insert Style: GX
- Shank Width: 25.00mm
- Shank Length: 110.00mm
- ANSI Code: G1111.2525R-3T22-067GX24
- Cutting Application: Grooving
- Depth of Cut: 22.00mm
- Cutting Location: External
- Hardware Required: Yes
- Country of Origin (subject to change): Germany
