Walter Valenite Walter – Shank tool – Grooving
Original price was: $218.65.$91.99Current price is: $91.99.

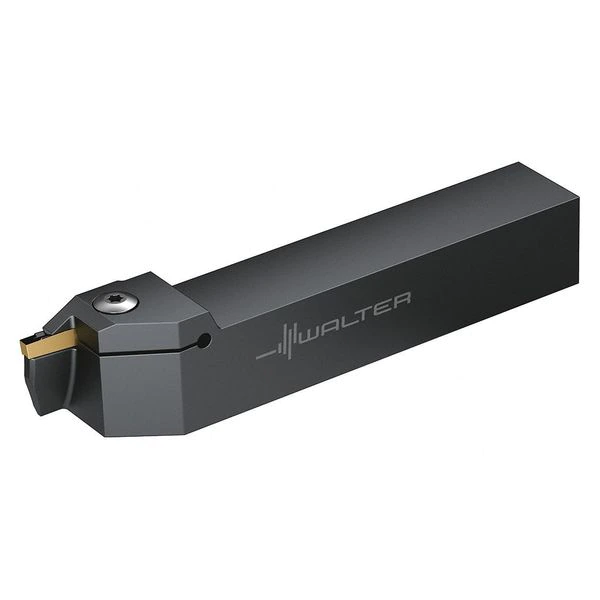

Indexable Grooving and Parting Toolholder, NOVEX-CUT External Positive, Insert Style GX, Left Hand, Grooving, Shank Width 25.00mm, ANSI Code G1111.2525L-5T12-040GX24, Center to Cutting Tip 23.60mm, Compatible Hardware Clamp Screw FS2118;Torx Key FS1464
Walter Valenite #G1111.2525L-5T12-040GX24 Specifications
- Zoro #: G8399133
- Mfr #: G1111.2525L-5T12-040GX24
- Item: Indexable Grooving and Parting Toolholder
- Material: Steel
- Overall Length: 150.00mm
- Shank Dia.: 25mm
- Cutting Direction: Left Hand
- Application: Axial Grooving
- Includes: Clamp Screw FS2118;Torx Key FS1464
- Center to Cutting Tip: 23.60mm
- Max. Grooving Width: 5.00mm
- Compatible Hardware: Clamp Screw FS2118;Torx Key FS1464
- ANSI Code: G1111.2525L-5T12-040GX24
- Insert Holding Type: Clamp
- Shank Length: 110.00mm
- Insert Style: GX
- Cutting Location: External
- Shank Width: 25.00mm
- Product Family: NOVEX-CUT External Positive
- Cutting Application: Grooving
- Head Length: 40.00mm
- Max. Workpiece Dia.: 70.00mm
- Hardware Included: Yes
- Hardware Required: Yes
- Depth of Cut: 12.00mm
- Series: G1111
- Shank Shape: Square
- Shank Height: 25.00mm
- ISO Number: G1111.2525L-5T12-040GX24
- Toolholder Style: G1111
- Country of Origin (subject to change): Germany
