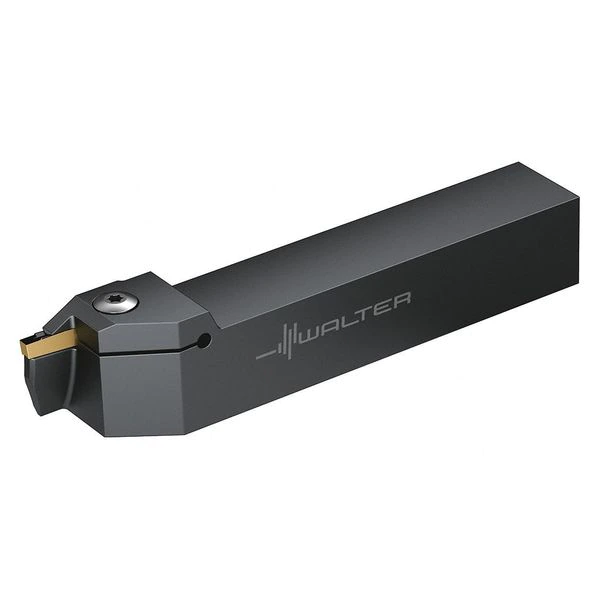

Walter Valenite Walter – Shank tool – Grooving
Original price was: $218.65.$97.99Current price is: $97.99.
Indexable Grooving and Parting Toolholder, NOVEX-CUT External Positive, Insert Style GX, Left Hand, Grooving, Shank Width 25.00mm, ANSI Code G1111.2525L-4T25-220GX24, Center to Cutting Tip 24.10mm, Compatible Hardware Clamp Screw FS2118;Torx Key FS1464
Walter Valenite #G1111.2525L-4T25-220GX24 Specifications
- Zoro #: G8421637
- Mfr #: G1111.2525L-4T25-220GX24
- Item: Indexable Grooving and Parting Toolholder
- Material: Steel
- Overall Length: 156.00mm
- Shank Dia.: 25mm
- Cutting Direction: Left Hand
- Application: Axial Grooving
- Includes: Clamp Screw FS2118;Torx Key FS1464
- Center to Cutting Tip: 24.10mm
- Insert Style: GX
- Cutting Location: External
- Hardware Required: Yes
- Head Length: 46.00mm
- ISO Number: G1111.2525L-4T25-220GX24
- Hardware Included: Yes
- Insert Holding Type: Clamp
- Shank Length: 110.00mm
- Max. Workpiece Dia.: 500.00mm
- Product Family: NOVEX-CUT External Positive
- Shank Shape: Square
- Depth of Cut: 25.00mm
- Compatible Hardware: Clamp Screw FS2118;Torx Key FS1464
- ANSI Code: G1111.2525L-4T25-220GX24
- Cutting Application: Grooving
- Shank Height: 25.00mm
- Shank Width: 25.00mm
- Toolholder Style: G1111
- Series: G1111
- Max. Grooving Width: 4.00mm
- Country of Origin (subject to change): Germany
