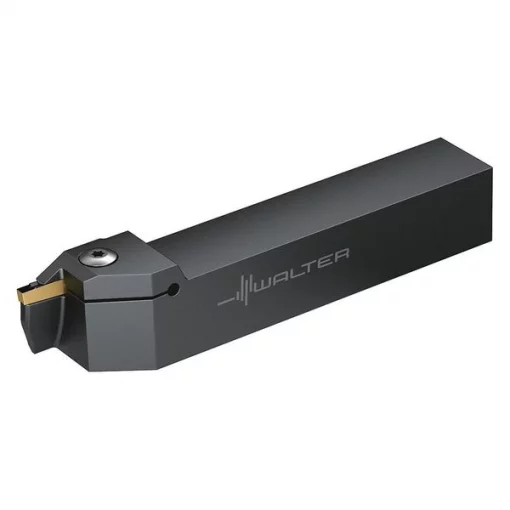

Walter Valenite Walter – Shank tool – Grooving
Original price was: $218.65.$98.99Current price is: $98.99.
Indexable Grooving and Parting Toolholder, NOVEX-CUT External Positive, Insert Style GX, Left Hand, Grooving, Shank Width 1 in, ANSI Code G1111.16L-4T20-052GX24, Center to Cutting Tip 24.58mm, Compatible Hardware Clamp Screw FS2118;Torx Key FS1464
Walter Valenite #G1111.16L-4T20-052GX24 Specifications
- Zoro #: G8422547
- Mfr #: G1111.16L-4T20-052GX24
- Item: Indexable Grooving and Parting Toolholder
- Material: Steel
- Overall Length: 5-63/64 in
- Shank Dia.: 1 in
- Cutting Direction: Left Hand
- Application: Axial Grooving
- Includes: Clamp Screw FS2118;Torx Key FS1464
- Compatible Hardware: Clamp Screw FS2118;Torx Key FS1464
- Product Family: NOVEX-CUT External Positive
- Cutting Location: External
- Max. Grooving Width: 4.00mm
- Shank Shape: Square
- Shank Height: 1 in
- ISO Number: G1111.16L-4T20-052GX24
- Head Length: 42.00mm
- Hardware Required: Yes
- Insert Style: GX
- Max. Workpiece Dia.: 72.00mm
- Cutting Application: Grooving
- Series: G1111
- Insert Holding Type: Clamp
- Center to Cutting Tip: 24.58mm
- Hardware Included: Yes
- Shank Length: 110.00mm
- Depth of Cut: 0.7870 in
- Toolholder Style: G1111
- ANSI Code: G1111.16L-4T20-052GX24
- Shank Width: 1 in
- Country of Origin (subject to change): Germany
