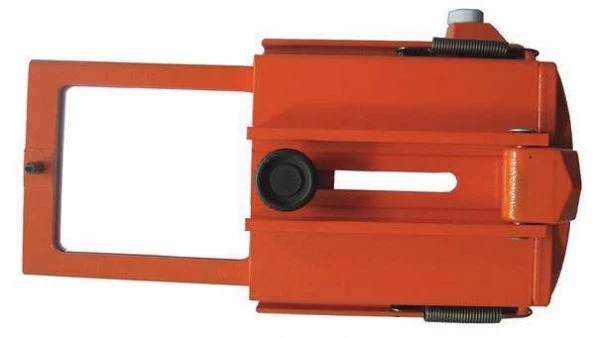

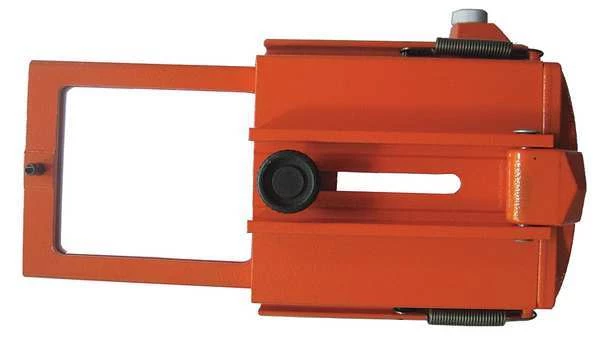

Zoro Select Drill Press Guard, 2-3/4 In. Chuck Dia.
Original price was: $108.99.$87.19Current price is: $87.19.
Drill Press Guard, Guard Style Telescoping, For Quill Diameter 1 3/4 in to 3 1/2 in, Guard Shape Flat, Guard Height 5 in to 7 1/2 in, Guard Width 5 1/2 in, Mount Type Collar Clamp, Body Material Aluminum
Zoro Select #29DY69 Specifications
- Zoro #: G7611344
- Mfr #: 29DY69
- Max. Chuck Dia. (In.): 2 3/4 in
- Max. Stroke (In.): 7 1/2 in
- Min. Stroke (In.): 4 5/16 in
- Fits: Drill Presses with Exposed Lower Spindle Bearing Collar and Machine to Fit but Not Limited to No. 5PHC1, 5PHC2, 5PHC3, 5PHC4, 5PHC6, Needs to be Machined for Any Size Quill Larger than 1-3/4 in
- Window Material: Polycarbonate
- Lower Spindle Bearing Collar Diameter (In.): 1-3/4 to 3-1/2
- Body Material: Aluminum
- Color: Bright Orange
- Item: Drill Press Guard
- Window: 3/32 in Thick Polycarbonate
- Quill Dia. (In.): 1-3/4 to 3-1/2
- Characteristics: Lower Half of Guard Provides Safe, Clear View, Guard Pivots Upward for Quick Chuck or Drill Bit Changes and Telescopes from Collar to Drill Point for Full Protection
- Body: Aluminum
- For Lower Spindle Bearing Collar Diameter: 1 3/4 in to 3 1/2 in
- Mount Type: Collar Clamp
- Guard Width: 5 1/2 in
- For Quill Diameter: 1 3/4 in to 3 1/2 in
- For Maximum Stroke: 7 1/2 in
- Guard Shape: Flat
- Guard Height: 5 in to 7 1/2 in
- For Minimum Stroke: 4 5/16 in
- For Use With: Drill Presses with Exposed Lower Spindle Bearing Collar, Fit but Not Limited to Mfr.No. 5PHC1, 5PHC2, 5PHC3, 5PHC4, 5PHC6, Needs to be Machined for Any Size Quill Larger than 1 3/4 in
- Guard Style: Telescoping
- For Maximum Chuck Diameter: 2 3/4 in
- Country of Origin (subject to change): Taiwan, Province of China
